Sku: 7052

Drama LED W50 (White)

Regular price
$639.00
Regular price
Sale price
$639.00
Shipping calculated at checkout.
Vendor: Mega Lite

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Description

Caret Down

Here's what we like about the Drama LED W50 - it's a small, well-priced LED spot fixture which is great for small to medium-sized venues that only need white for their frontlight, but want the benefits of an LED.

By default, it's just on/off, but can be controlled via DMX with the additional DMX control box.  Your choice of lens is also an additional item, don't forget to add it :)

From the Manufacturer:

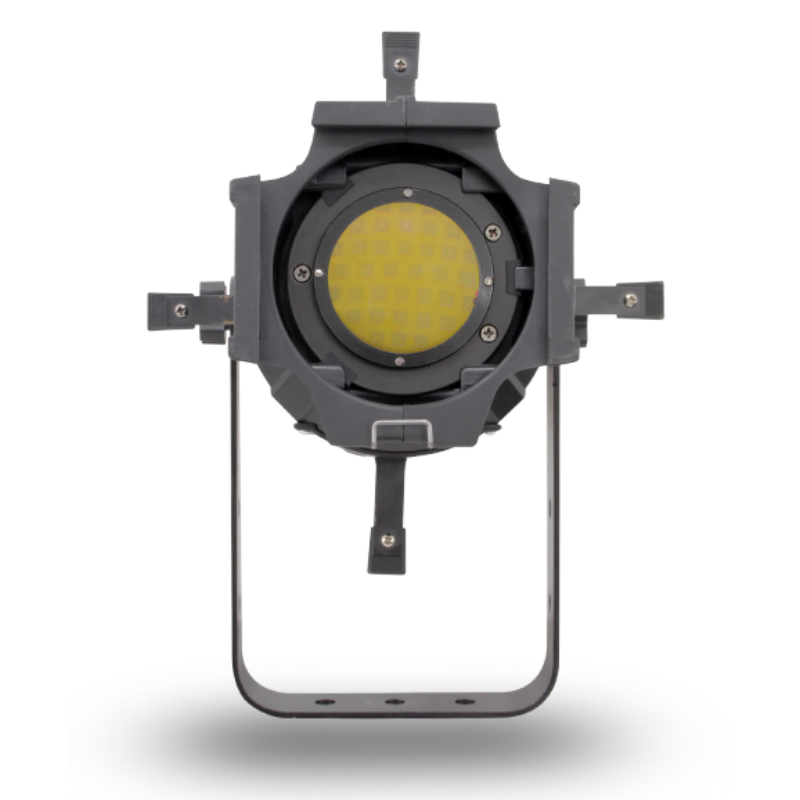

The Drama LED W50 (WHITE) is a compact yet powerful ellipsoidal with a smooth, flat spotlight. This single-source 50-watt LED fixture has a robust 2557 lumen output, yet only measures 14.5 inches long and weighs less than 5 pounds. It’s just the right size for a small to medium-sized stage or venue.
The Drama LED W50 has 4 lens options including 19-, 26-, 36- and 50-degree to best suit the throw requirements of the application. Four framing blades come equipped with this unit, perfect for changing the shape of the spotlight. The fixture also comes standard with a gobo holder used to project patterns and a gel frame holder used to change the color of the spotlight. The projection can be focused manually with the unit’s lens tube. Additionally, a manual iris accessory is available to adjust the diameter of the spotlight. The fixture’s housing is available in black or painted white. It is manufactured with a single mounting yoke for rigging.
The Drama LED W50 is an on/off lighting fixture or a controllable unit. An external controller is available to control the fixture via DMX 512. It mounts on the side of the fixture’s single yoke. This gives the unit 255 steps of dimming and a flash mode. Additionally, four dimming curves offer varying speeds of fading to black. The controller is made to your specs with either 3-pin or 5-pin DMX connections. The unit houses an auto-switching power supply that operates from 100V to 240V.

In the Box:

  • (1) Drama LED W50
  • (1) Power Cable
  • (1) Gel Frame
  • (1) Gobo Holder

Features:

  • Light Source: 1x50W COB LED
  • Color Temperature: 5749K
  • CRI: 84
  • Beam Angle: Based on lens accessory
  • Dimming: N/A. An external controller is available to control the fixture via DMX 512.
  • Refresh Rate: 50/60Hz
  • Color: "Daylight"
  • Effects: Strobe, Gobos
  • Control Protocol: An external controller is available to control the fixture via DMX 512.
  • Operating Modes: 1ch/2ch
  • IP Grade: IP20



Tech Specs

Optics:

Light Source Type: LED

Light Source Wattage: 50w

Control

DMX Channel Modes: 1/2

DMX 3-Pin Connectors?: Yes

DMX 5-Pin Connectors?: Yes

Physical:

Length: 10.5 in

Width: 6.33 in

Height: 9 in

Weight: 3.75 lb

Electrical

Voltage Range: 100-240

Maximum Wattage: 50w

Warranty

Warranty: 1 Year
