Sku: DPH481067

DioPlex HD-4/4Q/4QS

Regular price
$1,179.00
Regular price
Sale price
$1,179.00
Shipping calculated at checkout.
Vendor: DVS LED

LED wall lead time is approximately 3 weeks. Please contact us for more information or to look at quicker shipping options.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Size: HD4

Description

Caret Down

This is a high quality durable LED Panel that is great for use in outdoor applications. This is a robust and cost effective solution that still provides you with the top of the range quality that you would expect from DVS. This LED video wall is safe to use in almost all weather conditions with it's IP67 rated enclosure. Don't miss out on getting yours!

From The Manufacturer:

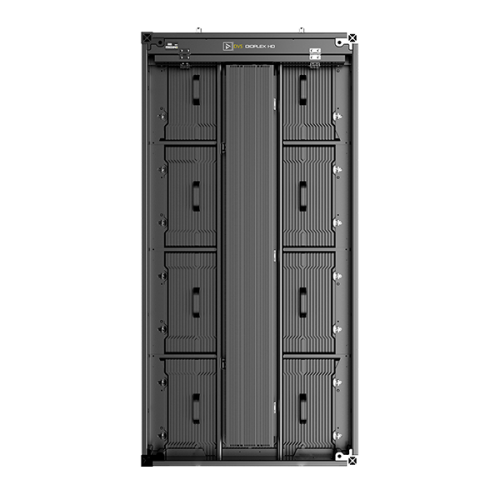

DioPlex HD-4 is a high-resolution, 4.8mm pixel pitch outdoor LED video wall panel designed to provide a robust, yet cost-effective solution for permanent install applications. Its high pixel density provides a fully scalable solution for close viewing distances and increased image detail in a robust IP67 rated enclosure that ensures long-lasting operation in a variety of weather conditions. DioPlex HD-4 features high-output, high-contrast SMD encapsulated LEDs to deliver stunningly vivid images optimized for visibility in broad daylight, and preserve color consistency with lower brightness settings.  DioPlex HD series are uniquely both front- and rear-serviceable with a lightweight design featuring patented aluminum convective heat-sink modules for efficient, fanless operation.

If you do not have experience with LED walls, professional installation is strongly recommended.

     LED Panel Key Features:

    • Convective Heat-Sink Aluminum LED Modules
    • Front & Rear Serviceability
    • High Output, High-Contrast SMD LEDs
    • IP67 Rated + Tapered Water Drainage Soffits
    • Enclosed IP-Rated Power/Data Connections
    • Detachable PSU Housing w/ Direct Module Connections

    In the Box:

    • DioPlex HD-4/4Q/4QS LED Panel
    Specifications:
    • Pixel Pitch: 4.81mm
    • Brightness: 5,800≥ NITS (Standard)
    • Viewing Angle: 140° H | 120° V
    • Refresh Rate: 3,840≥ Hz
    • Grayscale: 14 Bit +/-
    Optical:
    • Brightness: 800 nits
    • View Angle: 160° Horizontal by 140° Vertical
    • Grayscale: 14 bit +/-

    Power:

    • Voltage: 120-240v
    • Max Power: 450w/panel
    • Avg. Power: 230w/panel

    Control:

    • Control System: NovaStar
    • Receiving Card: NovaStar A5S Plus
    • Supported Inputs: HDMI, DVI, VGA, SDI, WiFi
    • Frame Rate: 60hz

    Tech Specs

    Physical:

    Length: 500 mm

    Width: 1000 mm

    Height: 86 mm

    Weight: 35 lb

    Electrical

    Voltage Range: 120-240v

    Maximum Wattage: 450w / panelw

    Power Cable Connector - Fixture Side: PowerCON TRUE1 In/Thru (enclosed)

    Main Power Connector on Included Cable: Edison

    Warranty

    Warranty: 5 Years
