Sku: FOC302

Focus Hybrid

Regular price
Regular price
Sale price
Shipping calculated at checkout.
Vendor: ADJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa


Caret Down

The ADJ Focus Hybrid is an interesting spot/beam hybrid fixture that is small, fast, and offers the ability to create tight, beamy-looks of light all the way up to a 24° spot size.   For mid-size venues with a tight budget, this fixture can offer a lot of bang for the buck and cut through even bright washes of other lighting.

From the Manufacturer:

Offering an efficient 200W LED light source combined with an extensive feature set, the ADJ Focus Hybrid is a versatile moving head luminaire. It can function interchangeably as a spot, wash or beam fixture, making it ideal for rental and event production applications as well as for installation in venues that require a moving light which can deliver a high degree of flexibility. It features motorized zoom and focus, two GOBO wheels, an independent color wheel, two rotating prisms and a replaceable frost filter.

This light is focused through a precision-engineered optical system and a variety of beam-shaping elements to generate a flexible output which can be used to create aerial effects, surface pattern projections or color washes. The Focus Hybrid offers a beam angle variable between an intense 2-degrees and a significantly wider 24-degrees, with motorized zoom providing quick and precise changes between beam angle settings. For washes, a Heavy Frost filter is fitted as default, but this can be replaced to suit the needs of specific applications and a Medium Filter is also supplied together with the fixture as standard.

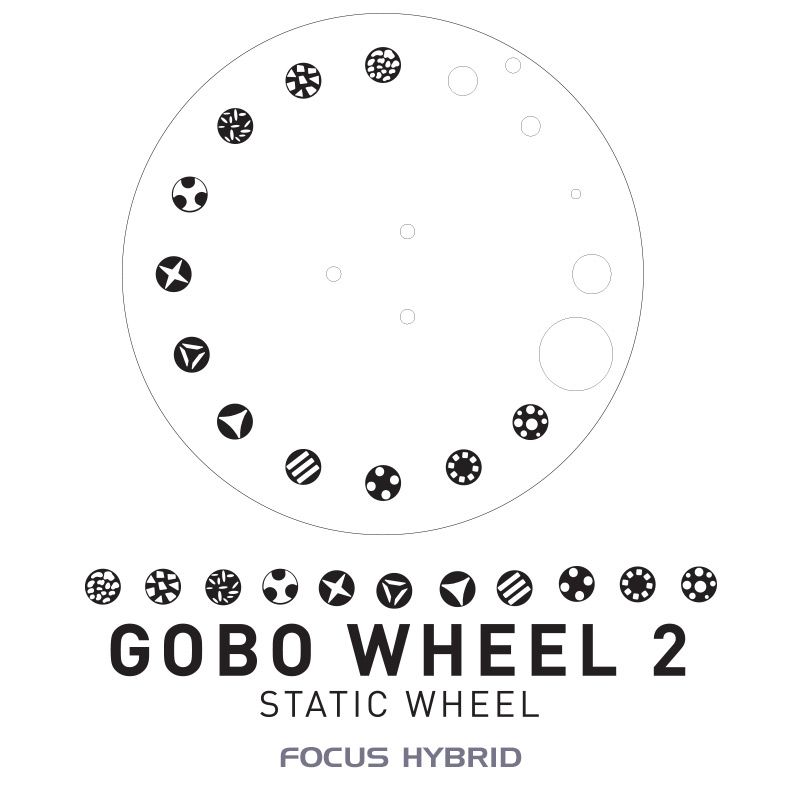

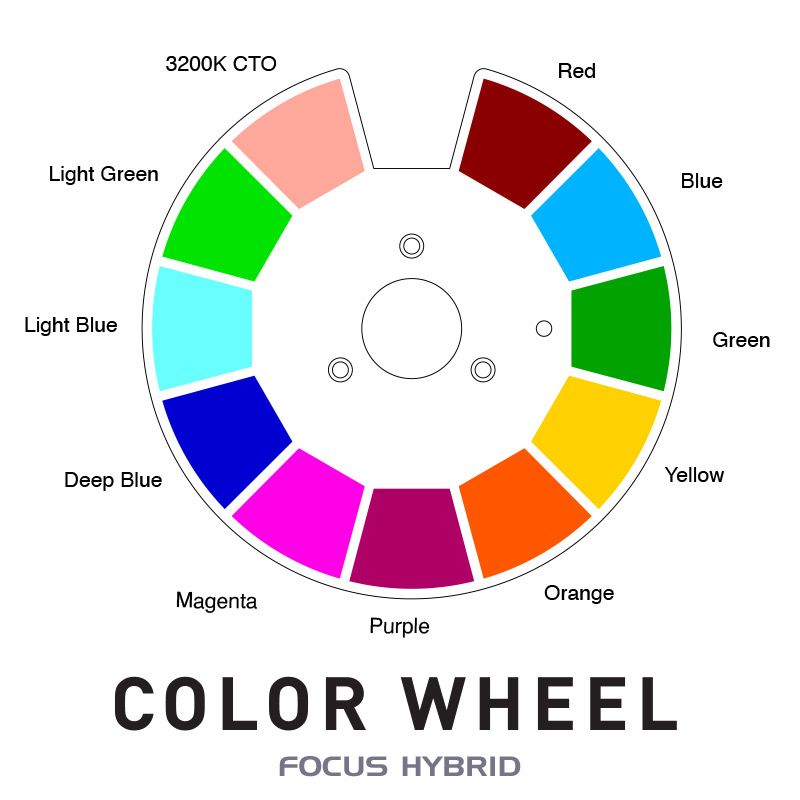

A dedicated wheel offers a choice between 11 dichroic color options (plus open), including a 3200K CTO filter for achieving a warm white output. The fixture also boasts two independent GOBO wheels, one featuring 7 slots for interchangeable indexed rotating GOBO patterns and the other featuring 15 static stamped metal GOBOs (including four beam reducers). Two rotating prism options are also provided – 8-facet circular and 6-facet linear – for creating multibeam surface textures and dynamic mid-air effects.

From the GEAR Pro's:

In the Box:

  • (1) Focus Hybrid
  • (1) Locking Power Cable
  • (2) Omega Brackets
  • (1) Medium Frost Filter


  • Light Source: 1x 200W LED
  • Output: 4100 Lumens
  • Color Temperature: 7500K
  • CRI: >70
  • Beam Angle: 2° - 24° Motorized Zoom
  • Dimming: Electronic
  • Refresh Rate: Variable
  • Strobe: Variable (1-20Hz)
  • Color: Color Wheel (11 dichroic), 3200 Variable CTO
  • Gobo: 1x7 Interchangeable Rotating-Indexing Gobos. 1x15 Static Gobo Wheel
  • Effects: 8-Facet Circular & 6-Facet Linear Rotating Prisms, Replaceable frost filter
  • Control Protocol: DMX, RDM, Wifly
  • Operating Modes: DMX, Manual
  • DMX Channel Modes: 19 / 23 / 25
  • IP Grade: IP20


Tech Specs


Light Source Type: Cool White LED

Light Source Wattage: 200w

Minimum Beam Angle: 2.0°

Maximum Beam Angle: 24.0°


DMX Channel Modes: 19 / 23 / 25

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes


Length: 6.93 in

Width: 10.95 in

Height: 20.99 in

Weight: 31 lb


Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 335w

Power Cable Connector - Fixture Side: PowerCON

Main Power Connector on Included Cable: Edison
