Sku: FRO717

Frost FX BAR W

Regular price
Regular price
Sale price
Shipping calculated at checkout.
Vendor: Eliminator

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa


Caret Down

The Frost bars from Eliminator are really cool units - for not a lot of dough, you get a reasonably-solid unit with PowerCon locking power connectors and DMX control of both the wash LED's and the backlight LED's in 14-segments across the 1 meter bar.

From the Manufacturer:

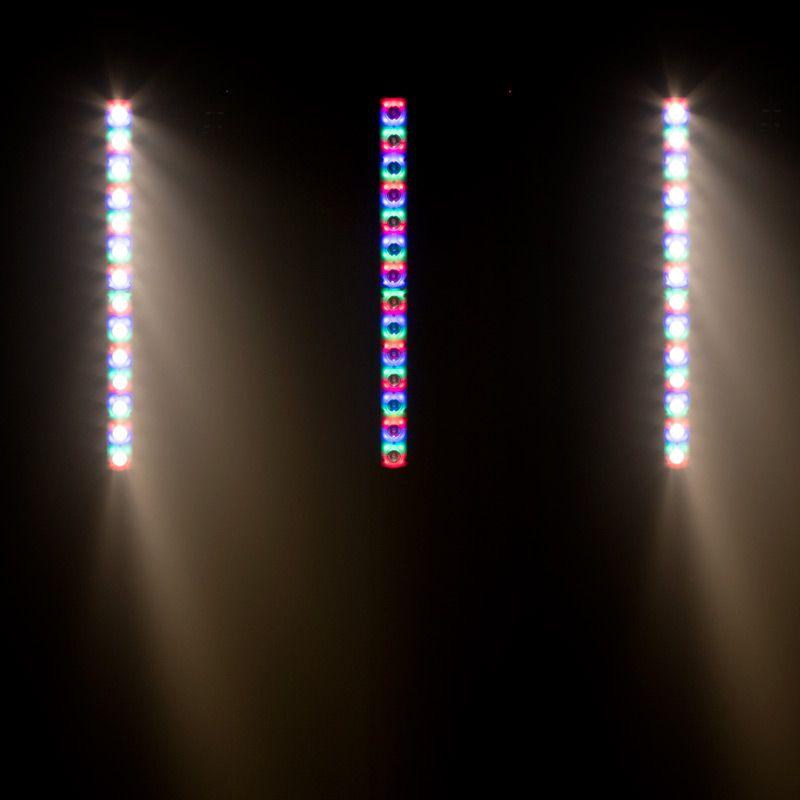

The Eliminator Lighting Frost FX Bar W is a 1-meter LED linear wash fixture that chases colors and creates breathtaking effects. Includes 14x 3W white LEDs for beam effects + 84x 5050 RGB (3-IN-1) SMD LEDs for glowing effect. Use horizontally or vertically for unique effects for stages, bars, lounges, club and mobile entertainers.

From the GEAR Pro's:

For a pretty low price, this bar packs an impressive amount of ability.  In this price range, there's not a lot of pixel-mapped bar-type LED wash lights.

This one can give you control of up to 14 segments of both the main wash light and the backlight LED's.  The main wash LED's are 3w Warm White while the backlight is RGB.
So this makes a cool "crowd blinder" type light.  Want full RGBW color mixing?  Check out the Frost Bar RGBW!

The bottom line - it's not going to be a light for the biggest stages, but you might be surprised how well the 3w LED's do for graphical effects behind performers on stage.  And it can pull double-duty as an uplight bar in darker spaces (dark ballrooms, etc).

In the Box:

  • (1) Frost FX BAR W
  • (1) Locking Power Cable
  • (1) Hanging Bracket


  • Light Source: 14x 3W W + 84x 5050 RGB LED
  • Beam Angle: 17 degrees
  • Dimming: 0-100% Electronic Dimming
  • Strobe: Variable
  • Effects: 64 Built-In Color Macros, 45 Built-In Shows
  • Control Protocol: DMX
  • Operating Modes: DMX, Auto, Sound and Primary/Secondary
  • IP Grade: 20


Tech Specs


Light Source Type: W + RGB LED

Light Source Wattage: 14 x 3w

Minimum Beam Angle: 17.0°

Maximum Beam Angle: 17.0°


DMX Channel Modes: 3 / 8 / 14a / 14b / 17 / 56 / 60 / 66 / 69

DMX 3-Pin Connectors?: Yes

DMX 5-Pin Connectors?: No


Length: 39.4 in

Width: 4.8 in

Height: 2.8 in

Weight: 7 lb


Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 55w

Power Cable Connector - Fixture Side: PowerCON

Main Power Connector on Included Cable: Edison
