This is the light you need if you're looking for high brightness (especially with colors), high color quality, and you prefer extra gobos instead of framing shutters. It's got a lot under the hood and can do just about anything you'd expect a spot fixture to do!

From the Manufacturer:

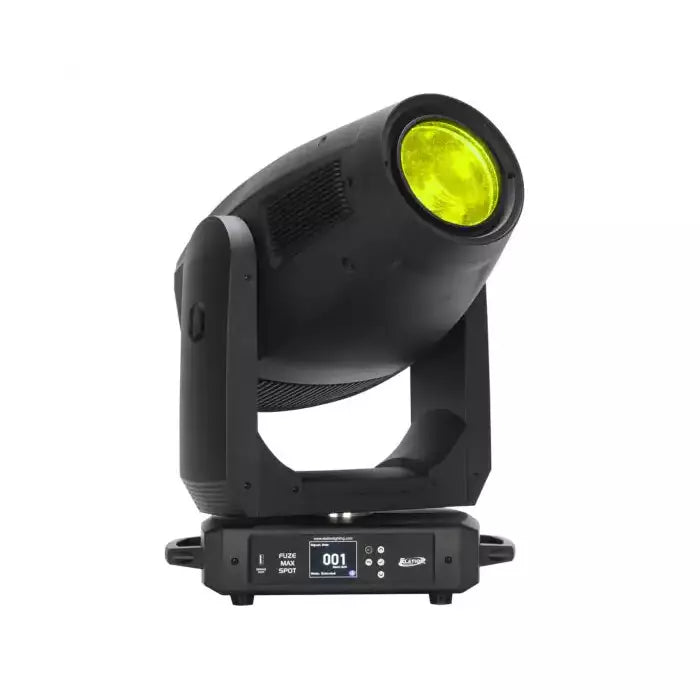

The FUZE MAX SPOT™ is a full spectrum automated LED Spot fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes a 800W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of over 21,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.

The FUZE SPOT MAX is designed for any application where fully automated spot fixture with outstanding and compelling color range and quality is required. Two rotating gobo wheels, one fixed gobo wheel, animation wheel, dual frost, prism and iris round out its comprehensive feature set in this quiet and extremely powerful automated spot fixture.

From the GEAR Pro's:

The core of the FUZE series from Elation is the RGBMA (Red, Green, Blue, Mint, Amber) LED array that provides great, high-quality whites and really good colors.  It excels in color brightness when compared to traditional "white-source" fixtures, and is able to make a greater range of colors than CMY fixtures.

Plus, being an RGBMA source means that colors can snap between completely opposite tones instantly!

The FUZE MAX Spot offers a lot of great features under the hood, and is quiet enough for many applications.

In the Box:

  • (1) Fuze Max Spot
  • (2) Omega Brackets
  • (1) Locking Power Cable


  • Light Source: 800W RGBMA LED
  • Color Temperature: 2400 - 8500K
  • CRI: 92
  • Beam Angle:  7° to 53° Motorized Zoom
  • Dimming: Variable 16-bit Dimming Curve Modes
  • Refresh Rate: Variable
  • Strobe: Variable
  • Color: RGBMA
  • Rotating Gobo Wheel 1: 6 Rotating / Indexing Interchangeable Glass Gobos
  • Rotating Gobo Wheel 2: 6 Rotating / Indexing Interchangeable Glass Gobos
  • Static Gobo Wheel: 7 Fixed Interchangeable Glass Gobos
  • Effects:
    • Animation Wheel
    • Dual Variable Frost Filter (Medium/ Wash)
    • 4 Facet Round, 4 Facet Linear Prism
    • Motorized Iris
  • Control Protocol: DMX, RDM, Art-NET, sACN
  • Operating Modes: DMX, Manual, Auto Program
  • IP Grade: IP20


Tech Specs


Light Source Type: RGBMA LED

Light Source Wattage: 800w

Minimum Beam Angle: 7.0°

Maximum Beam Angle: 53.0°


DMX Channel Modes: RGBMA 34/44, CMY 32/40

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes


Length: 18.19 in

Width: 21.26 in

Height: 28.3 in

Weight: 76.2 lb


Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 1214w

Power Cable Connector - Fixture Side: PowerCON True1

Main Power Connector on Included Cable: Edison
