Sku: LS-NODE 2

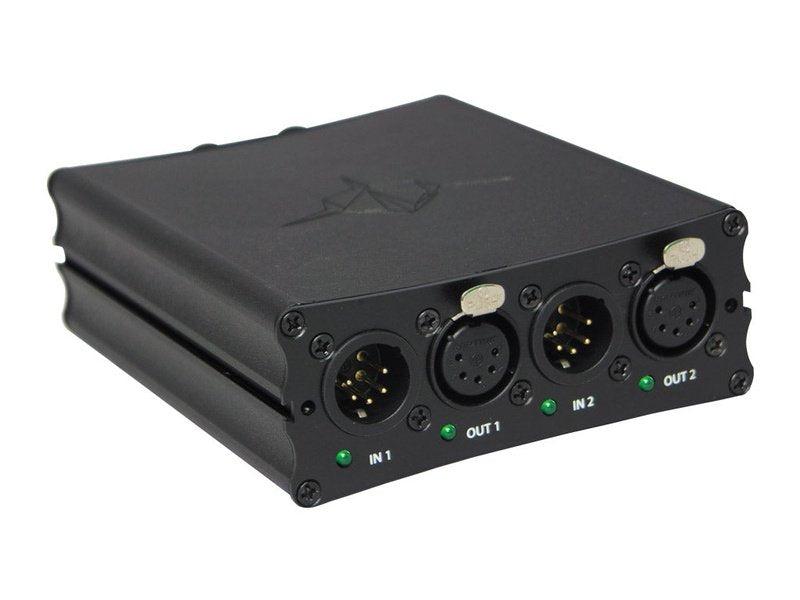

LightShark LS-Nodes

Regular price
Regular price
Sale price
Shipping calculated at checkout.
Vendor: LightShark

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Title: 2 Universe


Caret Down

The LS-Nodes are a simple, easy-to-use and well-priced set of Art-Net & sACN nodes from Work Pro.

From the Manufacturer:

The LS-Node series is the new RDM/DMX streaming range from WORK PRO that supports industry standards ArtNet & sACN. They feature from 1 up to 4 DMX universes, with 3 different models: LS-Node1, LS-Node2 & LS-Node4, each of which adds its respective number of freely configurable DMX universes.

These small LS-Node products are available in the same quarter-rack physical format as the original LS-Core and are powered via a compact USB-C connector or by PoE, which is helpful when used in installations where they may be rack-mounted with an optional LS-AR 19 rack chassis.

All LS-Node products come with an integrated Ethernet switch with 2 ports and are multiprotocol, supporting the industry standards ArtNet and sACN.

LS-Node is fully compatible with LightShark consoles and can also be configured via a webserver, through which users can set up parameters like DMX frame rate (from 15 to 40 frames/s), firmware upgrades, independent RDM/DMX ports routing (any universe can be routed to any of the RDM/DMX ports independently) and modes of use.

With ArtNet/RDM compatibility, LS-Node allows configuration, status monitoring and management of remote devices from lighting consoles.

From the GEAR Pro's:

These nodes do everything we'd expect from a DMX node - configurable input/output, merging, and both Art-Net and sACN.

We like that they configure from a web interface (no utilities to download), and the integrated 2-port network switch can be a lifesaver when using multiple units together.

The POE power option is great too for when you have a direct run to a POE switch, or else the included USB-C adapter works great.

In the Box:

  • (1) LS Node
  • (1) USB Power Cable
  • (1) USB Power Adapter


  • Ethernet-RDM/DMX bidirectional transceivers
  • Every port independently configured
  • Merger HTP/LTP mode
  • Backup mode
  • Supports sACN, ArtNet/RDM/DMX
  • Integrated Ethernet switch
  • DMX frame rate configurable
  • PoE (Power over Ethernet) powered
  • 1/4 rack 19" enclosure

Tech Specs


DMX 5-Pin Connectors?: Yes
