Maverick Mk Pyxis

Regular price
Regular price
Sale price
Shipping calculated at checkout.
Vendor: Chauvet Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa


Caret Down

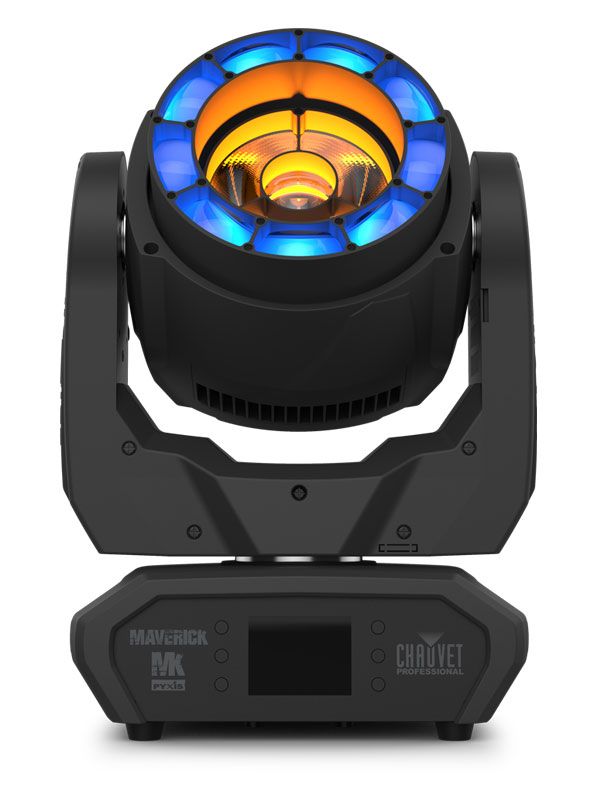

With Chauvet Professional's Maverick MK Pyxis, you may enhance your creativity with a limitless selection of fantastic eye-candy effects. This innovative and portable moving head has a ring of nine 15W RGBW LEDs with a zoom range of 7° to 45° and built-in color macros and gobos, as well as a powerful 60W RGBW LED serving as a center pixel with a 3° beam angle. The fixture produces epic beam and wash effects, has a broad zoom range, continuous 360° pan and tilt movement, and amazing aerial and pixel-mapping effects. Control protocols include DMX, sACN, Art-Net, and W-DMX.

From the Manufacturer:

Maverick MK Pyxis empowers your creativity by giving you an endless array of incredible eye-candy looks with its epic beam and wash effects, wide zoom range, continuous 360° pan and tilt movement and awesome aerial and pixel-mapping effects. This revolutionary and compact moving head features a ring of nine 15 W RGBW LEDs with a zoom range of 4.9° to 58.4° and built in color macros and gobos, as well as a punchy 60 W RGBW LED serving as a center pixel with a 3° beam angle. Choose from DMX, sACN, Art-Net, or W-DMX for control.

At a glance
  • A full featured RGBW LED wash and beam fixture with 360° continuous pan and tilt movement

  • A (9) 15 W RGBW LED outer ring of LEDs with a 4.9°— 58.4° zoom range and pixel control for wash and narrow effects

  • A single 60 W RGBW LED center pixel with a fixed 3° beam angle for dedicated beam color effects

  • Virtual Color wheel with instantaneous access to 21 colors

  • Built in color effects for quick design possibilities

  • Built in virtual gobo wheel with background colors for impressive atmospheric effects

  • Quiet operation for a wide range of installation situations

  • DMX, W-DMX, S ACN, Art-Net, and Kling-Net control for full flexibility

  • RDM enabled for remote addressing and trouble shooting

  • Converts TCP/IP to DMX for shorter data cable runs

  • 2.8°— 58.4° zoom range for variable beam sizes

  • True 1 compatible power input

  • Battery backup touchscreen display with auto rotate depending on fixture orientation

  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup

In the Box:

  • (1) Maverick MK Pyxis
  • Seetronic Powerkon IP65 power cord
  • Omega bracket with mounting hardware


    • Light Source:
      • 9 LEDs outer ring (quad-color RGBW) 15 W, (1.29 A)
      • 1 LED center pixel (quad-color RGBW) 60 W, (4.5 A)
    • Color Temperature:  2,800 to 10,000 K
    • Beam Angle:  5° to 28°
    • Refresh Rate:
    • Strobe:  Electronic | 0 to 20 Hz
    • Color: RGBW
    • Control Protocol:  Art-Net, Kling-Net, DMX, W-DMX, sACN
    • Operating Modes:  26, 66, 113 or 131
    • IP Grade:  IP20, dry location

    Tech Specs


    Light Source Type: 10 LEDs

    Light Source Wattage: 15 W, (1.29 A) & 60 W, (4.5 A)w

    Minimum Beam Angle: 5.0°

    Maximum Beam Angle: 28.0°


    DMX Channel Modes: 26,66,113,131

    DMX 3-Pin Connectors?: Yes

    DMX 5-Pin Connectors?: Yes


    Length: 12.2 in

    Width: 8.85 in

    Height: 18 in

    Weight: 31.96 lb


    Voltage Range: 100 to 240 VAC

    Power Cable Connector - Fixture Side: Seetronic Powerkon IP65

    Main Power Connector on Included Cable: Seetronic Powerkon IP65
