Ahh the memories, this is the device that got me into ONYX in the first place...The NX-Touch is the most cost-effective fader wing available for any lighting console.

From the Manufacturer:

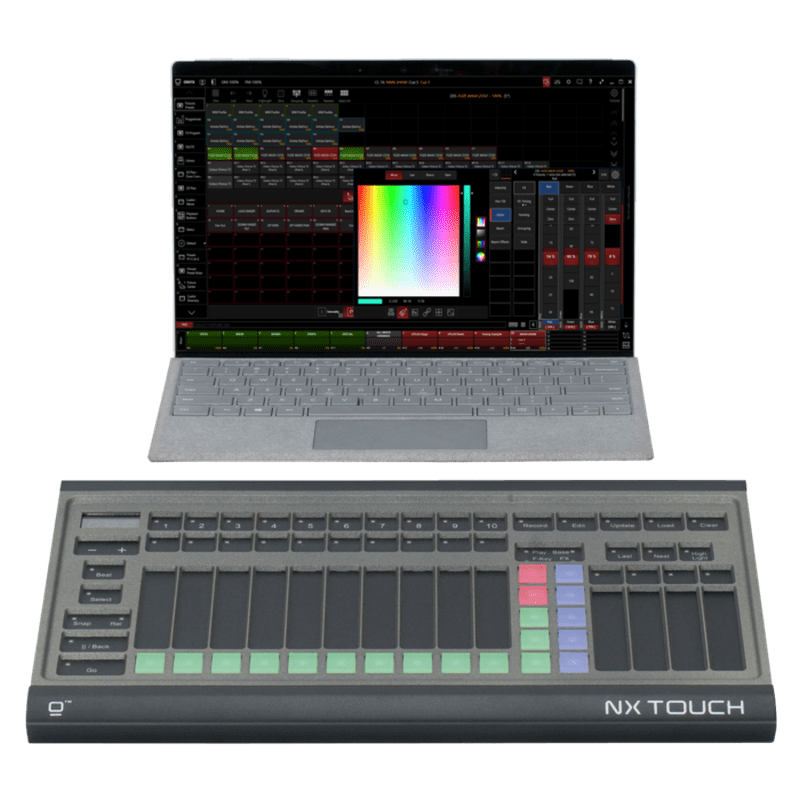

The NX Touch is a powerful yet simple control surface for the ONYX platform, Fully compatible with all ONYX consoles and PC software, NX Touch is a plug-and-play solution with an innovative control surface like no other lighting console.
14 touch faders allow control of playbacks and fixture parameters while 20 velocity-controlled pads allow for new types of effects. Additional programming buttons such as Record, Edit, Update, Load and Clear are accessible directly from the NX Touch control panel. NX Touch includes one DMX port for direct control of any compatible DMX device and enables the ONYX NOVA license for up to 4 Universes.

From the GEAR Pro's:

In the dinosaur ages, before ONYX was called ONYX, this product came out and I was intrigued.  Because this console wing was less than 1/2 the price of all it's competitors due to it's touch faders.

And I still ask - where else can you go and get 10 faders, a programming section, and a DMX output for under $600?  The answer- there isn't anything else out there that can offer this much for so little cost.

So yes, the faders aren't quite as nice as real faders.  But they can work and I've done many shows with them successfully.

It's easy to grab an NX Touch, toss it in your backpack with a laptop and go do a gig.  No case necessary (though they do now come with covers - nifty!).

Or, pull it out for a fader wing with any ONYX console - in fact, I think everybody who buys a console should buy a touch for the side!  Why not have (10) more faders for secondary cuelists?

Also brilliant - the entire NX Touch is Vesa Mountable for permeantly-installed rigs.

In the Box:

  • (1) Obsidian NX Touch
  • (1) Obsidian USB Cable
  • (1) Dust Cover


  • ONYX NOVA License (4 Universes)
  • USB control surface for both smaller applications and professional use
  • Combined playback and programming surface with innovative touch fader technology
  • Pressure sensitive flash buttons
  • 10 Playbacks, 10 multi-purpose function keys, 4 digital encoders
  • Portable, rugged and lightweight design
  • USB connection for ONYX on PC systems or as expansion wing for all ONYX consoles
  • Integrated DMX output, expandable up to 128 Universes
  • Plug and Play USB device without external power supply
  • Rackmount option


Tech Specs


DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes


Length: 15.5 in

Width: 8.6 in

Height: 1.8 in

Weight: 3.3 lb


Voltage Range: 5 VDC (USB)

Power Cable Connector - Fixture Side: USB B

Main Power Connector on Included Cable: USB A
