Chauvet Professional

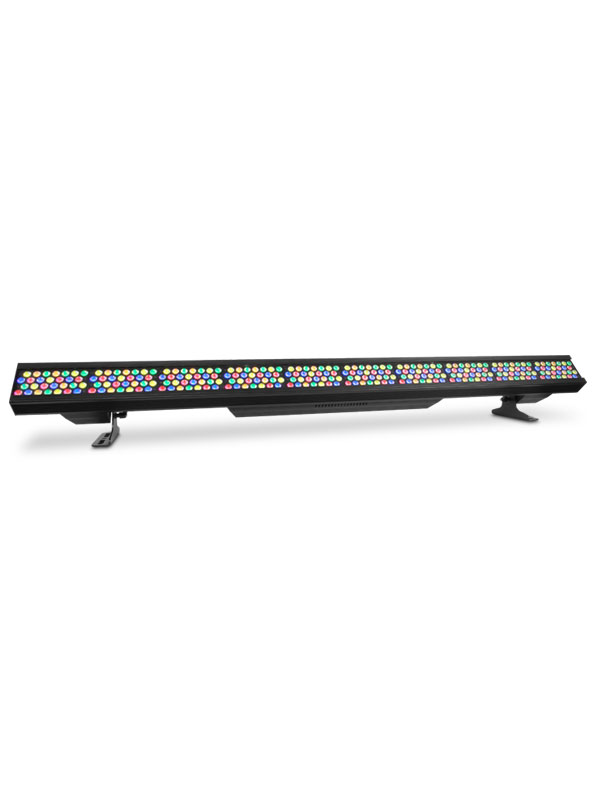

Ovation B-2805FC

Ovation B-2805FC


Regular price $3,170.00 USD
Regular price Sale price $3,170.00 USD
Sale Sold out
Shipping calculated at checkout.

Usually ships in 2-3 business days. Fill out a quote request and we'll check backorder status!

The Ovation B-2805FC takes advantage of the RGBA-Lime color mixing system's enhanced color capabilities and improved color renderings, making it ideal for film, stage, and theater lighting. In addition to typical DMX control, this 69" batten supports RDM, Art-NetTM, and sACN. For greatest versatility, up to ten portions can be controlled independently. Programming is simplified by an easily accessible Virtual Color Wheel and Color Temperature Presets. It includes a holographic filter that quickly locks into position for improved wall/cycling grazing.

From the Manufacturer:

Ovation B-2805FC is the first batten-style fixture to take advantage of the extended color capabilities of the RGBA-Lime color mixing system. Control is easier than ever thanks to the incorporation of RDM, Art-Net™ and sACN in addition to standard DMX control. For maximum flexibility, up to 10 sections can be controlled individually while its easily accessible Virtual Color Wheel and Color Temperature presets make programming a
breeze. An included holographic filter locks into place for enhanced wall/cyc grazing ability.

At a glance
  • Full Color LED (RGBAL) batten fixture for theatre, film and production

  • Theatre-ready with 16-bit dimming of master dimmer and individual colors

  • Multiple control personalities for complex programming schemes up to 10 sections of control

  • Included holographic filter for use in cyc lighting or wall grazing applications for ultra-smooth color mixing

  • Virtual Color wheel with color matched to popular gel colors

  • Art-Net™, sACN, 3- and 5-pin DMX and RDM (Remote Device Management) for added control flexibility

  • Neutrik® powerCON® and Amphenol etherCON® compatible connections for power and data linking

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Nearly silent operation for use in studio and theatre applications

In the Box:
  • (1) Ovation B-2805FC
  • (1) Neutrik® powerCON® power cord
  • (1) Wall Washing Filter


    • Light Source:  280 LEDs (60 red, 60 green, 60 blue, 40 amber, 60 lime) 3 W, (650 mA)
    • Color Temperature:  2800 K to 10000 K
    • CRI: 80
    • Beam Angle:  25° - 5
    • Strobe: 0 to 30 Hz
    • Color:  RGBAL
    • Control Protocol:   Art-Net™, DMX, RDM, sACN
    • Operating Modes:  32 personalities
    • IP Grade:  IP20, dry location

    Tech Specs


    Light Source Type: LEDs

    Light Source Wattage: 3 W (650 mA)w

    Minimum Beam Angle: 25.0°

    Maximum Beam Angle: 52.0°


    DMX Channel Modes: 32 personalities

    DMX 3-Pin Connectors?: Yes

    DMX 5-Pin Connectors?: Yes


    Length: 69 in

    Width: 8.26 in

    Height: 8.13 in

    Weight: 45.4 lb


    Voltage Range: 100 to 240 VAC

    Power Cable Connector - Fixture Side: Neutrik® powerCON®

    Main Power Connector on Included Cable: Edison (Local) plug to Neutrik® powerCON®
