Chauvet Professional

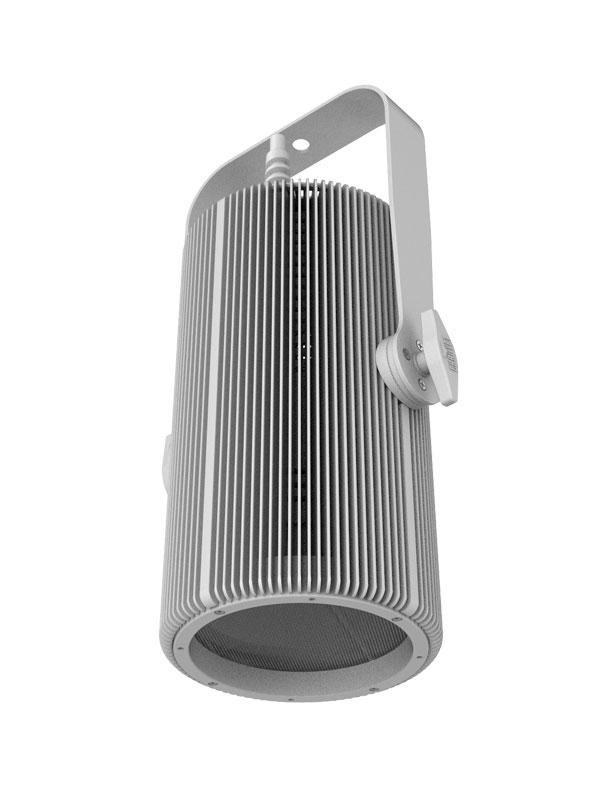

Ovation H-605FC - WHITE

Ovation H-605FC - WHITE


Regular price $1,770.00 USD
Regular price Sale price $1,770.00 USD
Sale Sold out
Shipping calculated at checkout.

Usually ships in 2-3 business days. Fill out a quote request and we'll check backorder status!

The Chauvet Professional Ovation H-605FC uses LED technology and the Ovation standard RGBA-Lime color palette to reproduce almost any color. This fixture has excellent color rendering and can recreate practically any white color temperature. Superior convection cooling delivers high output in a small package. With the addition of W-DMX, RDM, adjustable PWM, and an easy-to-navigate OLED full text display, this unit is ideal for theatrical and house of worship applications.

From the Manufacturer:

Ovation H-605FC takes full advantage of LED technology, utilizing the Ovation standard RGBA-Lime color palette to enable the fixture to replicate nearly any color with tremendous color rendering, as well as nearly any color temperature of white. Superior convection cooling provides excellent output in a compact package. Ideal for theatrical and house of worship applications, setup and control is now easier than ever with the addition of W-DMX, RDM, adjustable PWM and an easy to navigate OLED full text display. White housing not available in European Markets.

At a glance
  • Full Color LED (RGBAL), convection cooled houselight

  • Interchangeable lens plates to adapt to different mounting heights

  • 5-pin XLR and terminal blocks for DMX connections

  • Use included yoke for pipe mounting, or suspend from integrated loop-eye

  • Virtual Color wheel with color matched to popular gel colors

  • Color Temperature Presets from 2800 K to 6500 K with high CRI and CQS

  • 16-bit dimming for ultra-smooth fades

  • DMX, WDMX and RDM (Remote Device Management) for added programming flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

In the Box:

  • (1) Ovation H-605FC
  • (1) 65°, 45° and 25° lenses
  • (1) 80° filter
  • (1) Egg crate


    • Light Source:  60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 2 to 3 W, (800 mA)
    • Color Temperature: 4766 K
    • CRI: 90
    • Beam Angle: 37 ° - 51°
    • Dimming:  Electronic
    • Strobe:  Electronic
    • Color: RGBAL
    • Control Protocol:  DMX, RDM, W-DMX™
    • Operating Modes: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)
    • IP Grade:  IP20, dry location

    Tech Specs


    Light Source Type: LEDs

    Light Source Wattage: 2 to 3 W, (800 mA)w

    Minimum Beam Angle: 37.0°

    Maximum Beam Angle: 51.0°


    DMX Channel Modes: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)

    DMX 5-Pin Connectors?: Yes


    Length: 13.11 in

    Width: 9.44 in

    Height: 13.34 in

    Weight: 19.6 lb


    Voltage Range: 100 to 240 VAC

    Power Cable Connector - Fixture Side: Hard-Wired

    Main Power Connector on Included Cable: Bare-Wired
