Pinspot Bar

Regular price
Regular price
Sale price
Shipping calculated at checkout.
Vendor: Chauvet DJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa


Caret Down

From creating subtle glows for appetizing buffets to lighting inspiring exhibits and highlighting special event elements, harness pinspotting power with Pinspot Bar.

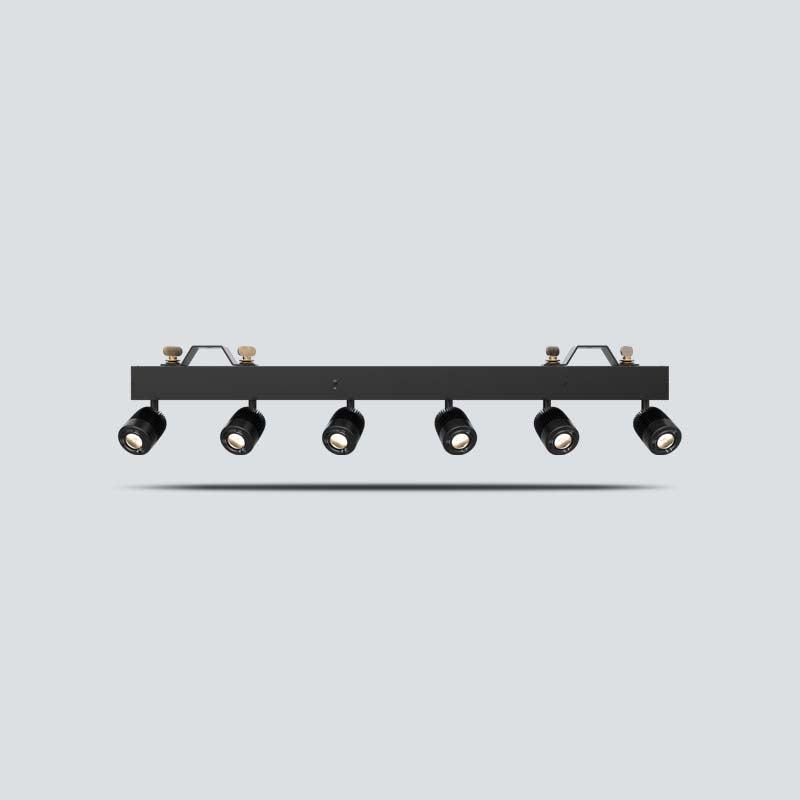

Pinspot Bar is a high-output bar with 6 independent pinspots designed to replicate traditional incandescent lamps. Independent control of each head offers true flexibility and programming capabilities. Achieve a clean and elegant look for any upscale event with only a single PowerCon-compatible power input—no messy cables—along with power linking capabilities that save time running cables to other fixtures. Pinspot Bar includes various beam diffusers and CTO filters to help achieve your desired look.

A pair of included Omega brackets allow for multiple mounting options including pipe and drape. Control Pinspot Bar via the on-board digital display, DMX, wireless IRC-6 remote, or D-Fi USB dongle.

In the Box:

  • (1) Pinspot Bar
  • (1) Locking Power Cable
  • (2) Omega Brackets
  • (6) 10° Diffusers
  • (6) 20° Diffusers
  • (6) 2700K CTO Filters


  • Light Source: 6x 15W Warm White LED
  • Color Temperature: 4000K
  • CRI: 81
  • Beam Angle: 5° (Optional 10° and 20° diffusers included)
  • Refresh Rate: 1000Hz
  • Control Protocol: DMX, D-Fi, IRC-6 Remote
  • Operating Modes: DMX, D-Fi Remote, IR Remote, Standalone
  • IP Grade: IP20

Tech Specs


Light Source Type: Warm White LED

Light Source Wattage: 6x 15w

Minimum Beam Angle: 5.0°

Maximum Beam Angle: 20.0°


DMX Channel Modes: 1 / 6 / 11

DMX 3-Pin Connectors?: Yes

DMX 5-Pin Connectors?: Yes


Length: 39 in

Width: 4.6 in

Height: 5 in

Weight: 9.4 lb


Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 171w

Power Cable Connector - Fixture Side: PowerCON

Main Power Connector on Included Cable: Edison
