Sku: PRH021

Proteus Hybrid

Regular price
Regular price
Sale price
Shipping calculated at checkout.
Vendor: Elation Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa


Caret Down

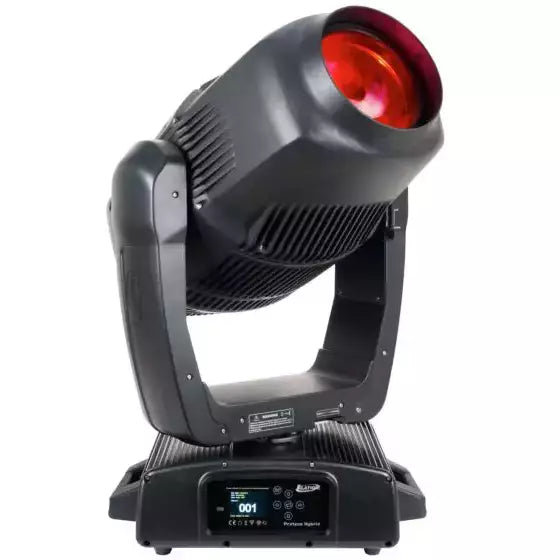

PROTEUS HYBRID™ is an IP65 rated 3-in-1 hybrid moving head beam, spot, and wash luminaire with the Philips™ MSD Platinum 21R 470W 80 CRI 8,000K lamp producing up to14,000 lumens.

Features include an advanced optical system with motorized zoom from 2° in beam mode to 38° in spot mode or 40° in wash mode, an advanced internal thermal cooling system, full CMY and linear CTO color mixing, 14 dichroic colors including CTB, CTO, and UV, 8 rotating glass interchangeable and 14 static-stamped metal gobos, full 360° bi-directional animation wheel, 8-facet and linear rotating prisms and frost filter, motorized focus and auto-focus, high speed mechanical shutter and strobe, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, Elation’s E-FLY™ internal wireless DMX transceiver, IP rated 5pin XLR and RJ45 ethernet in/out connections, IP65 Locking Power Cable in, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).

In the Box:

  • (1) Proteus Hybrid
  • (2) Omega Brackets
  • (1) IP65 Rated 5pin DMX Cable
  • (1) IP65 Rated RJ45 Cable (Fixture to Fixture Interconnect Use Only!)
  • (1) IP65 Locking Power Cable


  • Light Source: Philips MSD 21R 470W 8,000K Lamp
  • Color Temperature: 8,000K
  • CRI: 80
  • Beam Angle: 2° - 40°
  • Dimming: Mechanical
  • Strobe: Variable
  • Color: Full CMY Color Mixing and Linear CTO Color Correction
  • Color Wheel: 14 Dichroic Colors Including CTB, CTO, and UV
  • Rotating Gobo Wheel: 8 Interchangeable Rotating / Indexing Glass Gobos
  • Static Gobo Wheel: 14 Static-Stamped Metal Gobos
  • Effects:
    • Full 360° Bi-Directional Animation Wheel
    • Rotating Prisms and Prism Macros
    • Frost Filter Hybrid Wash Effect
    • Motorized Focus and Auto-Focus
  • Control Protocol: DMX, RDM, Art-NET, sACN, E-Fly
  • Operating Modes: DMX, Manual, Auto Program
  • IP Grade: IP65


Tech Specs


Light Source Type: Discharge Lamp

Light Source Wattage: 470w

Minimum Beam Angle: 2.0°

Maximum Beam Angle: 40.0°


DMX Channel Modes: 24 / 26 / 37

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes


Length: 18.45 in

Width: 22.5 in

Height: 37.1 in

Weight: 84 lb


Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 700w

Power Cable Connector - Fixture Side: PowerCON True1

Main Power Connector on Included Cable: Edison
