Sku: PRR760

Proteus Rayzor 760

Regular price
Regular price
Sale price
Shipping calculated at checkout.
Vendor: Elation Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa


Caret Down

Bright.  Pixel-mapped, sparkly, and waterproof!  It's the only wash light you need!

From the Manufacturer:

The Proteus Rayzor 760™ is a compact yet extremely powerful IP65 rated Wash Effects fixture featuring Elation’s unique SparkLED™ system and fast continuous Pan and Tilt motion. With its wide zoom range from 5 to 77 degrees it provides intense and well-defined mid-air beams at over 7,200 lumens as well as an exceptionally wide and even wash coverage, making it a perfect tool for any application, even in adverse outdoor conditions. SparkLEDs offer a prominent and innovative LED pixel effect with dedicated high brightness pixels inside the large front lenses for additional layers of creativity.

Driven by 7, independently controlled, 60W RGBW LEDs, delivering over 7,200 lumens of output with a total power of 420W, the Proteus Rayzor 760 provides a powerful beam that stands out on any stage. The oversized front lenses create a large surface on the fixture that is enhanced by the exclusive patent pending SparkLEDs technology. SparkLEDs consists of 28 individual white LEDs, strategically placed inside the lens itself to create a unique additional layer, allowing designers access to a new and innovative way of creating interest on the stage. Proteus Rayzor 760 offers this never seen before style of internal lens illumination for depth and visual impact. SparkLEDs are controllable by the lighting console or driven by a multitude of internal FX patterns.

In addition to its powerful wash and enhanced effects, the Proteus Rayzor 760 offers precise continuous pan & tilt rotation, allowing variable speed from slow to extremely fast movement effects. Combining the powerful LED output with the SparkLEDs while utilizing the 360° movement, allows the designer to create endless, unique and appealing designs from mid-air beams or wide stage washes to subtle effects for mood or the TV camera lens.

From the GEAR Pro's:

The Proteus Rayzor 760 is a bright wash light with a really wide zoom range (many other lights in this class are about a 10°-60° range, this one is 5° - 77°), the "eye candy" SparkLED effect, and it's fully waterproof IP65!  It's a great light, built for the long haul!

In the Box:

  • (1) Proteus Rayzor 760

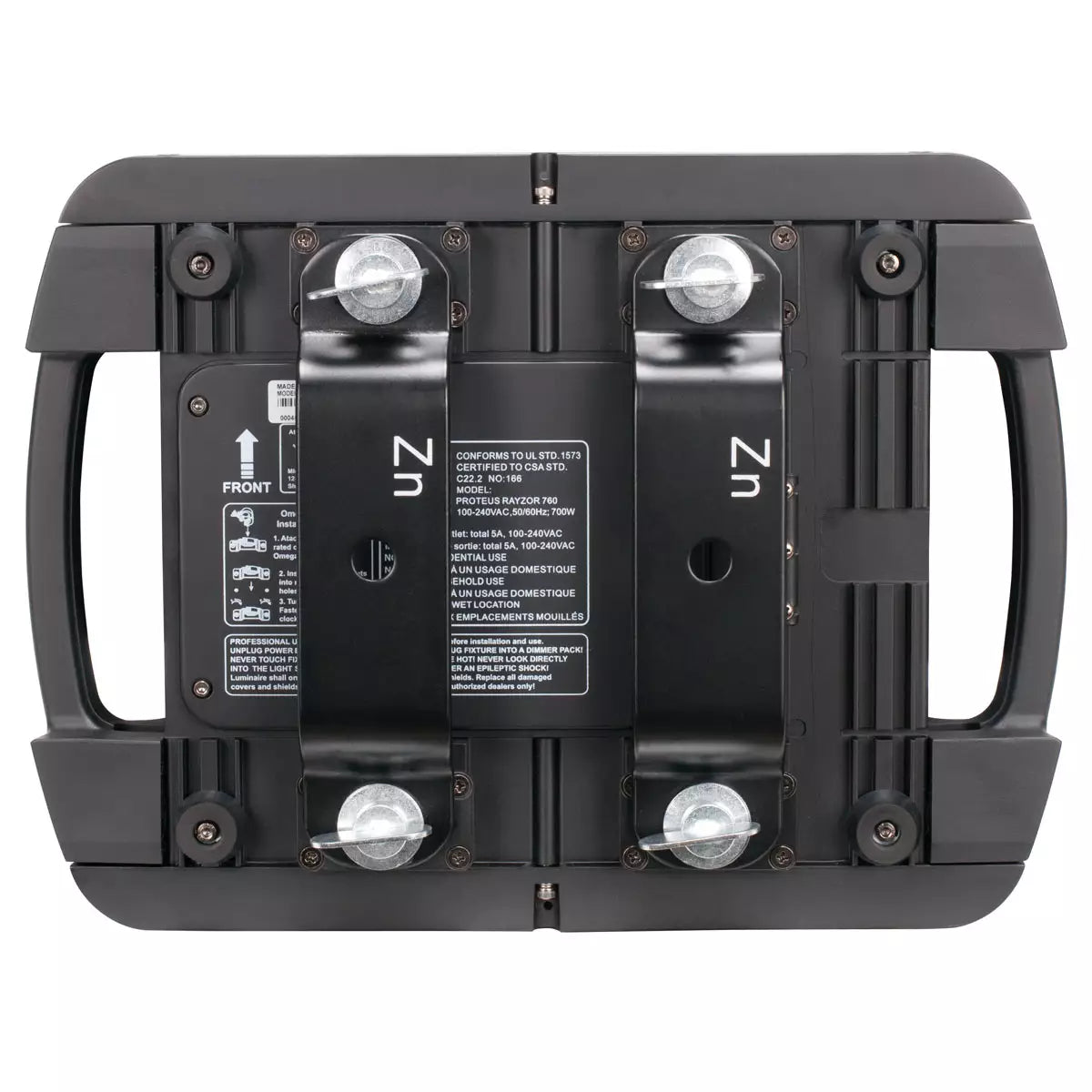

  • (2) Omega Brackets
  • (1) IP65 Rated 5pin DMX Cable
  • (1) IP65 Rated RJ45 DATA Cable (Fixture to Fixture Interconnect Use Only!)
  • (1) IP65 Locking Power Cord Power Cable


  • Light Source: 7x 60W RGBW LEDs
  • Color Temperature: 2700-8000K
  • CRI: 80
  • Beam Angle: 5° - 77°
  • Dimming: 16-bit Dimming
  • Refresh Rate: 900 -25000 Hz
  • Strobe: Variable
  • Color: RGBW Color Mixing
  • Effects: White SparkLED Lens Effect + Pixel Control
  • Control Protocol: DMX, RDM, Art-Net, sACN
  • Operating Modes: DMX, Manual, Auto Program
  • IP Grade: IP65


Tech Specs


Light Source Type: RGBW LED

Light Source Wattage: 6x 60w

Minimum Beam Angle: 5.0°

Maximum Beam Angle: 77.0°


DMX Channel Modes: 25 / 52 / 80

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes


Length: 14.31 in

Width: 10.24 in

Height: 19.43 in

Weight: 41 lb


Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 700w

Power Cable Connector - Fixture Side: PowerCON True1

Main Power Connector on Included Cable: Edison
