Elation Professional

SEVEN Batten 42

SEVEN Batten 42


Regular price $2,332.00 USD
Regular price Sale price $2,332.00 USD
Sale Sold out
Shipping calculated at checkout.

Usually ships in 2-3 business days. Fill out a quote request and we'll check backorder status!

Are you looking for a pro-grade, high-intensity striplight with pixel-mapped zones?  This fixture offers 7 colors for a huge variety of colors with high color quality.

From the Manufacturer:

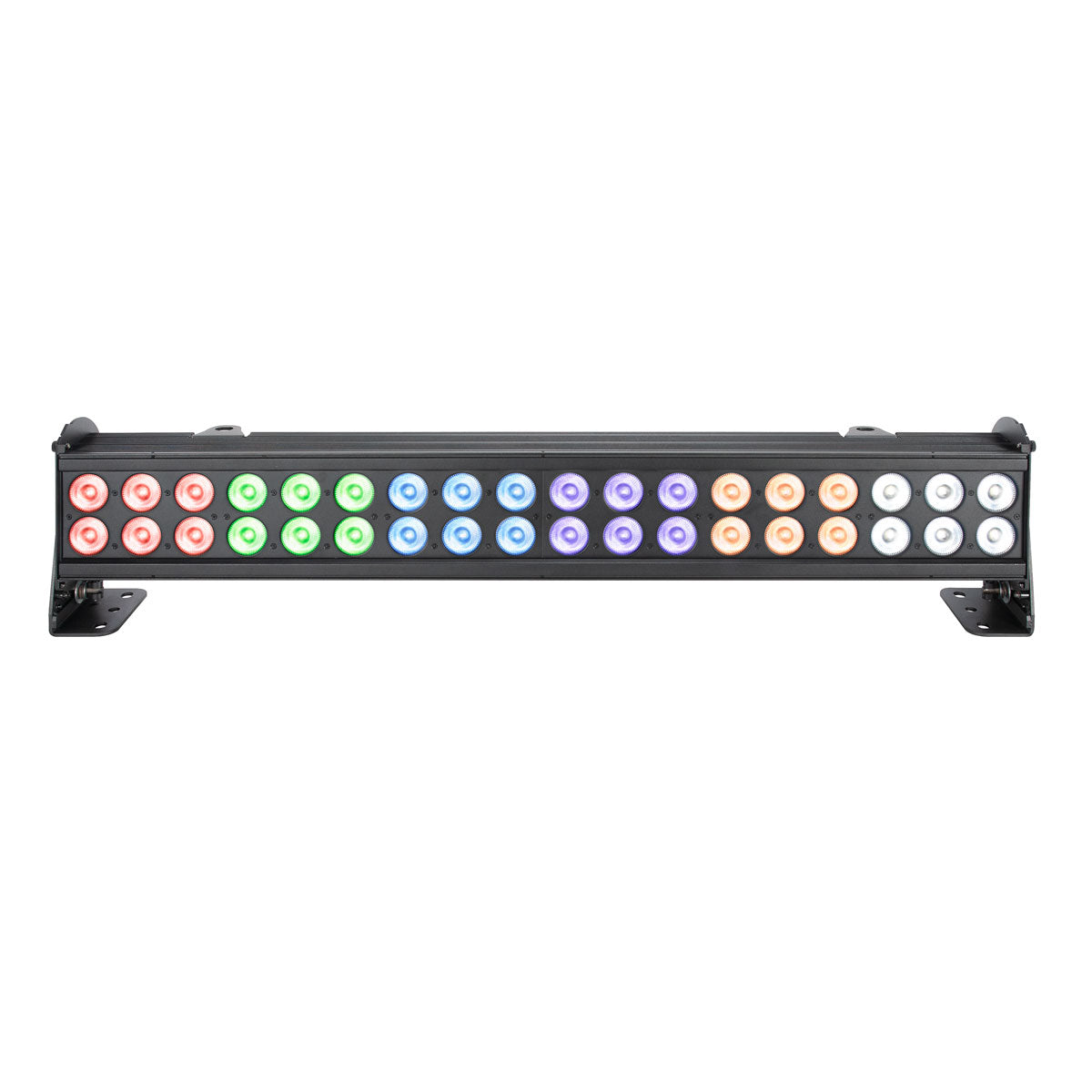

The SEVEN Batten 42™ is a seven color 3.5 foot (1m) long batten wash luminaire with (36) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Features include individual hue, saturation, and intensity control, special RGB SEVEN 3 channel mode (RGB + dynamic white, amber, lime, and UV), 6 pixel mapping zones with pixel flip mode, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX Art-Net, Kling-Net, and RDM (Remote Device Management) protocol support, 3/5pin DMX, RJ45 ethernet, and Locking Power Cable in/out connections, dual 220° manual tilt adjustable mounting brackets, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), a rugged powder coated die-cast aluminum exterior, and an integrated gel / frost filter slot.

In the Box:

  • (1) SEVEN Batten 42
  • (1) Locking Power Cable


  • Light Source: 36x 25W RGBAW+Lime+UV LEDs
  • Beam Angle: 20°
  • Dimming: Selectable 16-bit Dimming Curve Modes
  • Refresh Rate: Variable
  • Strobe: Variable
  • Color: RGBAW+Lime+UV
  • Effects: 6 Pixel Mapping Zones with Pixel Flip Mode
  • Control Protocol: DMX, RDM, Art-Net, Kling-Net
  • Operating Modes: DMX, Manual, Standalone
  • IP Grade: IP20


Tech Specs


Light Source Type: RGBAW+Lime+UV

Light Source Wattage: 36x 25w

Minimum Beam Angle: 20.0°

Maximum Beam Angle: 20.0°


DMX Channel Modes: 3 / 3 / 7 / 14 / 15 / 42 / 50 / 4 / 10 / 26

DMX 3-Pin Connectors?: Yes

DMX 5-Pin Connectors?: Yes


Length: 42 in

Width: 4.5 in

Height: 9 in

Weight: 39 lb


Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 614w

Power Cable Connector - Fixture Side: PowerCON True1

Main Power Connector on Included Cable: Edison


Warranty: 2 Years
