Sku: ESM166

Smarty Max

Regular price
Regular price
Sale price
Shipping calculated at checkout.
Vendor: Elation Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa


Caret Down

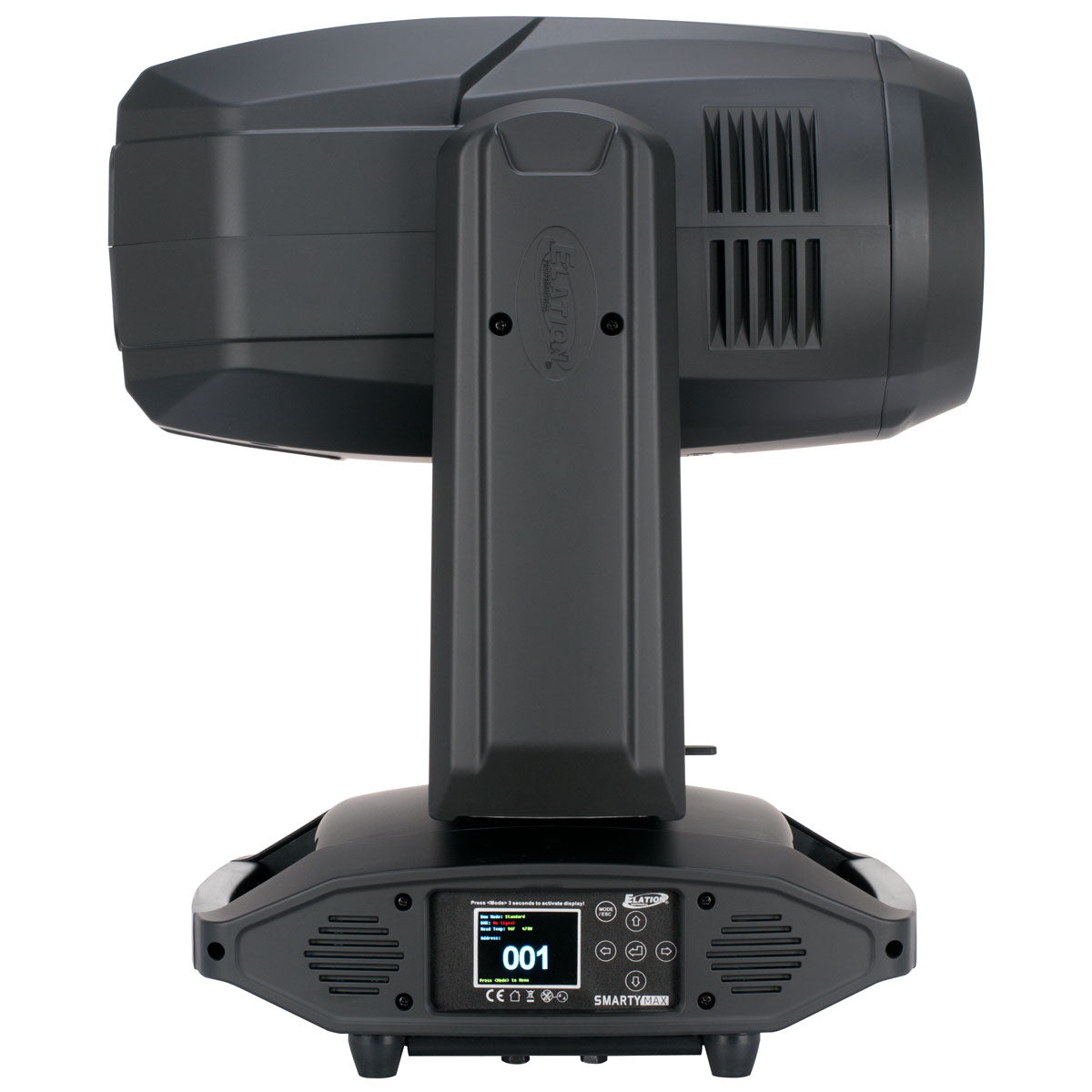

The SMARTY MAX™ combines high output and long lamp life in a feature packed compact and lightweight Hybrid fixture. SMARTY MAX is the Extreme Output Hybrid featuring the new Philips MSD Platinum FLEX 400 lamp and Elation's 2 year / 4,000 hours Ultimate Warranty.**

Rated at 480W and up to 4,000 hours smart lamp life the SMARTY MAX includes CMY and variable CTO and is the world’s first Hybrid incorporating a full Iris for dynamic beam effects. Four prisms on two planes, dual frosts plus dual gobo wheel and the unique dual track animation round out the comprehensive FX package in a compact and lightweight housing.
Delivering 21,000 lumens from its large 160mm front aperture, the SMARTY MAX has a crisp output for extremely powerful beams, sharp gobos and bright washes, making it a flexible fixture for almost any application, while providing an excellent return on investment.

In the Box:

  • (1) Smarty Max
  • (2) Omega Brackets
  • (1) Locking Power Cable


  • Light Source: Philips MSD Platinum 400 Flex 480W Lamp
  • Color Temperature: 8000K
  • CRI: 75
  • Beam Angle: Beam 2° - 20° | Spot 3° - 30° | Wash 9° - 35°
  • Strobe: Variable
  • Color: CMY Color Mixing System + Variable CTO
  • Color Wheel: 13 Colors
  • Rotating Gobo Wheel: 8 Interchangeable-Rotating / Indexing Glass Gobos
  • Static Gobo Wheel: 14 Static-Stamped Metal Gobos
  • Effects:
    • Dual Frost Filter for Light Frost/ Full Wash
    • 4 Prisms on Dual Planes
    • Iris
    • Dual Track Animation Wheel
  • Control Protocol: DMX, RDM, Art-NET, sACN
  • Operating Modes: DMX, Manual, Auto Program
  • IP Grade: IP20


Tech Specs


Light Source Type: Discharge Lamp

Light Source Wattage: 480w

Minimum Beam Angle: 2.0°

Maximum Beam Angle: 35.0°


DMX Channel Modes: 27 / 44

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes


Length: 15.34 in

Width: 17.53 in

Height: 25.27 in

Weight: 60 lb


Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 480w

Power Cable Connector - Fixture Side: PowerCON True1

Main Power Connector on Included Cable: Edison

Smarty Max
Smarty Max
