ADJ
UB 12H
UB 12H
SKU: UBH120
Usually ships in 2-3 business days. Fill out a quote request and we'll check backorder status!
Couldn't load pickup availability

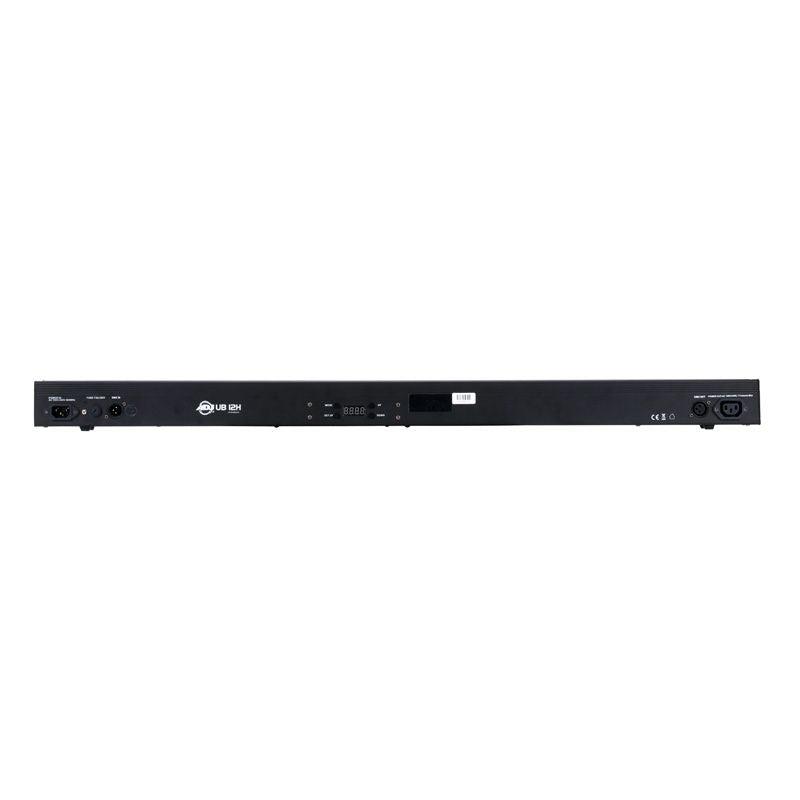

The ADJ UB 12H is a 41.75-inch (1-meter) professional grade indoor linear fixture powered by twelve 6-Watt HEX (6-IN-1) LEDs.
Its bright chromatic 40-degree beam angle provides vibrant HEX color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color.
In the Box:
- (1) UB 12H
- (1) IEC Power Cable
- (2) Mounting Brackets
- (1) UC IR wireless remote
Features:
- Light Source: 12x 6W RGBAW+UV LED
- Beam Angle: 40°
- Dimming: Electronic 0-100%
- Refresh Rate: 2200Hz
- Strobe: Variable
- Color: RGBAW+UV
- Effects: 3 or 6 Section Pixel Control
- Control Protocol: DMX, ADJ UC IR (included) and Airstream IR App
- Operating Modes: DMX, Auto, Sound Active, RGBWA+UV Dimmer, Static Color
- IP Grade: IP20
Tech Specs
Optics:
Light Source Type: RGBAW+UV LED
Light Source Wattage: 12x 6w
Minimum Beam Angle: 40.0°
Maximum Beam Angle: 40.0°
Control
DMX Channel Modes: 6 / 10 / 12/ 36
DMX 3-Pin Connectors?: Yes
DMX 5-Pin Connectors?: No
Physical:
Length: 41.75 in
Width: 2.5 in
Height: 3.75 in
Weight: 6 lb
Electrical
Voltage Range: 100 - 240 VAC 50/60Hz
Maximum Wattage: 88w
Power Cable Connector - Fixture Side: IEC
Main Power Connector on Included Cable: Edison
