Sku: D4B100

D4 Branch RM DMX Splitter

Regular price
Regular price
Sale price
Shipping calculated at checkout.
Vendor: ADJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa


Caret Down

A simple, inexpensive DMX splitter that gets the job done!  The D4 Branch RM offers basic DMX splitting without RDM at a really great price.

From the Manufacturer:

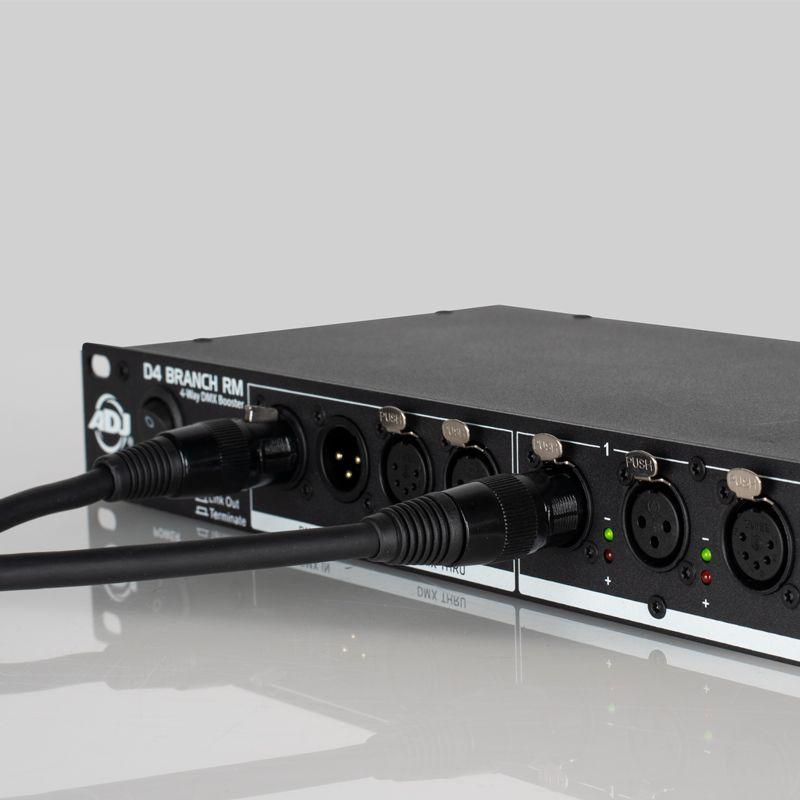

The ADJ D4 Branch RM is a single rack space, 4-way distributor/booster with 3-pin and 5-pin XLR input and output jacks. This unit takes the incoming DMX signal and splits it to four (4) separate outputs that are electronically isolated from each other to ensure uninterrupted data. In addition, each output has dedicated drivers to boost the incoming signal, and the unit includes a link / terminate button for easy troubleshooting.

From the GEAR Pro's:

Here's what we like - this is a value-priced splitter that rack mounts and offers (1) DMX thru and (4) amplified splitter outputs.

Each set of jacks (input and output) offers both 3 and 5 pin options.  For each output, you get to choose whether you use the 3-pin or 5-pin output - using both is a y-split, which is real bad for your DMX signal.

This is great to have so that you can use 3-pin on one show, 5 pin on the next, or any combination of the two for your outputs, depending on what gear and cabling options you have.

We also like the fixed power cord - no IEC cable to wiggle out between shows!

In the Box:

  • (1) D4 Branch RM
  • (2) Rack Mount Brackets & (4) Screws
  • (4) Rubber Pads


  • 4-Way DMX Data Splitter / Fully DMX512 (1990) Compliant
  • Built-in signal amplifier boosts the DMX signal for each port
  • Link / Terminate Button for Easy Troubleshooting
  • DMX Status LED Indicator
  • (1) 3-pin + (1) 5-pin XLR Isolated Inputs
  • (1) 3-pin + (1) 5-pin XLR Passive Loop Output
  • (4) 3-pin + (4) 5-pin XLR Isolated Outputs

Tech Specs


DMX 3-Pin Connectors?: Yes

DMX 5-Pin Connectors?: Yes


Length: 19 in

Width: 5.5 in

Height: 1.7 in

Weight: 5.3 lb


Voltage Range: 120 VAC

Maximum Wattage: 60w

Main Power Connector on Included Cable: Edison
