Elation Professional

KL Panel XL IP

KL Panel XL IP


Regular price $3,600.00 USD
Regular price Sale price $3,600.00 USD
Sale Sold out
Shipping calculated at checkout.

Usually ships in 2-3 business days. Fill out a quote request and we'll check backorder status!

The KL PANEL XL IP™ is an IP65 full-color-spectrum LED soft light that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality.

The KL PANEL XL incorporates a highly efficient 6-in-1 LED package that produces up to 40,000 field lumens at a 100° half-peak angle. The optional 4x2 Section control provides additional creative capabilities for color effects and visual impact.
Compact and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. Rugged housing with impact-resistant surrounds and base plate ensures the KL Panel XL can handle the rough handling on today's fast-paced sets.

It is fully self-contained without the need for an external power supply. It can also be remotely powered thru its integrated 4-pin XLR 24-36 VDC battery input. The KL Panel can be operated through industry-standard DMX, Art-NET or sACN protocols. In addition, it can also be adjusted manually using the included encoders and OLED display, providing instant control of Intensity, Color temperature, Green shift, and other important settings. The display and encoders are conveniently positioned on the bottom of the fixture to ensure easy access while the KL Panel is mounted on a stand. The integration of Elation’s E-FLY™ wireless system allows for even more flexibility of use.

In the Box:

  • (1) KL Panel XL IP
  • (1) Junior Pin
  • (1) Barndoor Assembly w/ Safety
  • (1) Locking Power Cable


  • Light Source: 570W RGBWLC LED Array
  • Color Temperature: 2,000 to 10,000K
  • CRI: 95
  • Dimming: Variable 16-bit Dimming Curve Modes
  • Refresh Rate: 900-25kHZ
  • Strobe: Variable
  • Color: RGBWLC

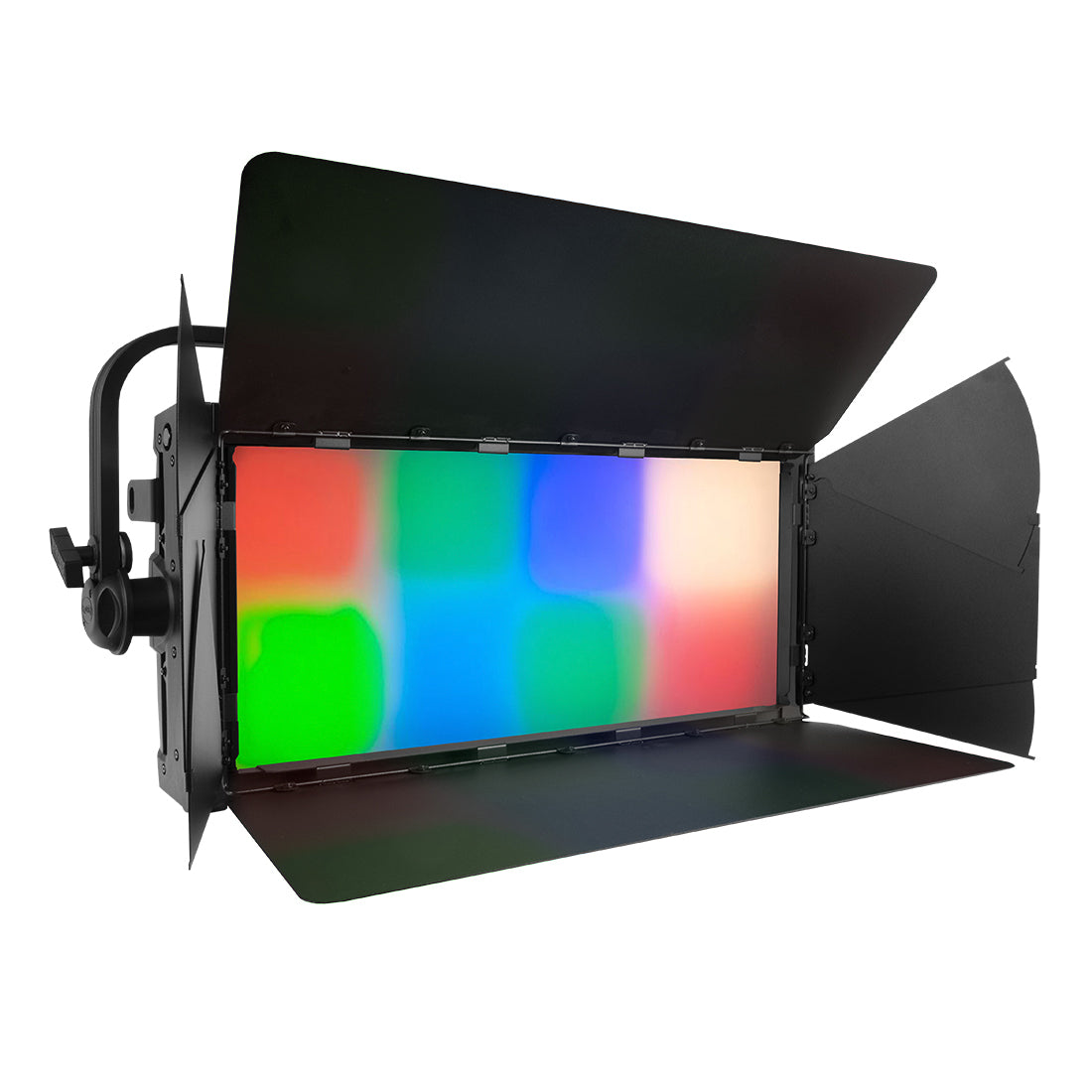

  • Effects: 4x2 Section control option
  • Control Protocol: DMX, RDM, Art-Net, sACN, E-Fly
  • Operating Modes: DMX, Standalone
  • IP Grade: IP65

Tech Specs


Light Source Type: RGBWLC LED

Light Source Wattage: 570w


DMX 3-Pin Connectors?: Yes

DMX 5-Pin Connectors?: Yes


Length: 33.1 in

Width: 6.7 in

Height: 14.4 in

Weight: 45.6 lb


Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 681w

Power Cable Connector - Fixture Side: PowerCON True1

Main Power Connector on Included Cable: Edison


Warranty: 2 Years
