Sku: PSP120

Prisma Mini Par 20

Regular price
Regular price
Sale price
Shipping calculated at checkout.
Vendor: Magmatic

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa


Caret Down

*This device requires an external driver linked here.

From the Manufacturer:

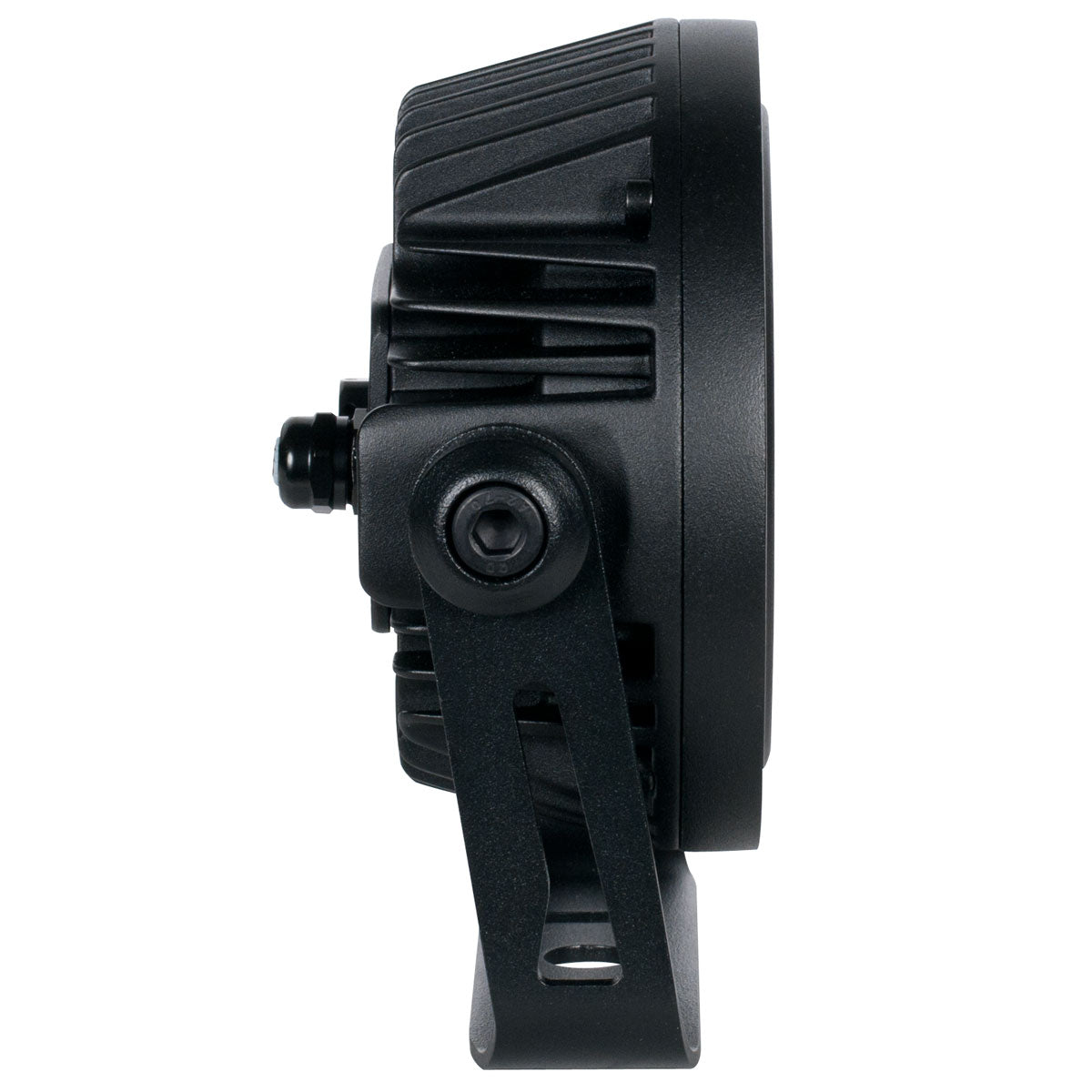

PRISMA MINI PAR 20™ is an IP65 rated exterior UV wash par luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20 degree beam angle.

Powered by the PRISMA DRIVER 8™ or PRISMA DRIVER 8IP™, features include an adjustable mounting yoke, a durable aluminum housing, and a 9 ft (2.7m) 2-Conductor 14 Gauge IP rated power/data pigtail cable.

In the Box:

  • (1) Prisma Par 20
  • (1) Phoenix Connector


  • Light Source: 7x 3W UV LEDs
  • Beam Angle: 20°
  • Wavelength: 365nm
  • Dimming: Variable Dimming Curve Modes
  • Refresh Rate: Variable
  • Strobe: Variable
  • Control Protocol: DMX, RDM
  • Operating Modes: DMX, Manual
  • IP Grade: IP65

Tech Specs


Light Source Type: UV LED

Light Source Wattage: 7x 3w

Minimum Beam Angle: 20.0°

Maximum Beam Angle: 20.0°

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: No


Length: 5.66 in

Width: 2.66 in

Height: 5.64 in

Weight: 1.98 lb


Voltage Range: 36.7 VDC

Maximum Wattage: 19w

Main Power Connector on Included Cable: Pigtail


Warranty: 2 Years
